How to accurately and efficiently mark dimensions in AutoCAD 2014 has troubled many users. PHP editor Zimo will introduce the dimensioning method of AutoCAD 2014 in detail through this article, covering from basic linear dimensioning to advanced parametric dimensioning to help you solve the problem of dimensioning. Continue reading below to learn best practices and tips for dimensioning in AutoCAD 2014.

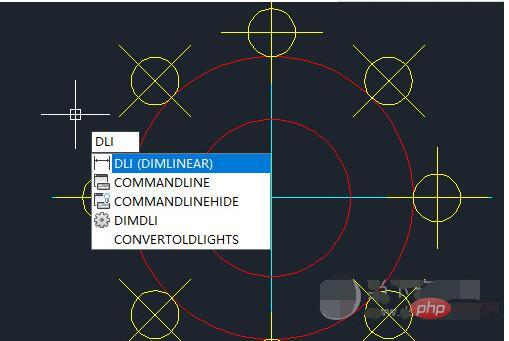

Enter the command DLI, click the space

autocad2014怎么标注尺寸 autocad2014标注尺寸的相关方法

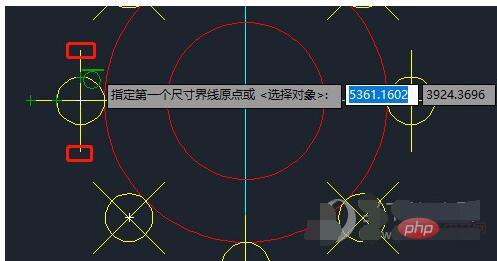

to select two points of a line segment, as shown in the picture

autocad2014怎么标注尺寸 autocad2014标注尺寸的相关方法

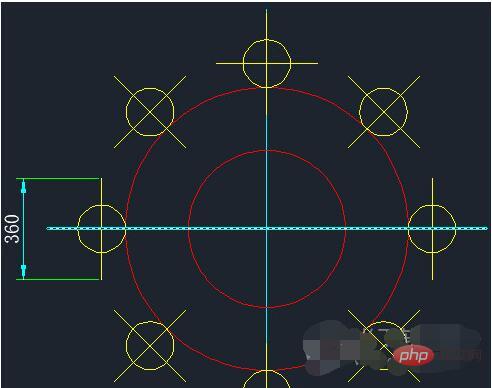

Pull the graph, As shown in the figure, the length of the line segment can be displayed

autocad2014怎么标注尺寸 autocad2014标注尺寸的相关方法
